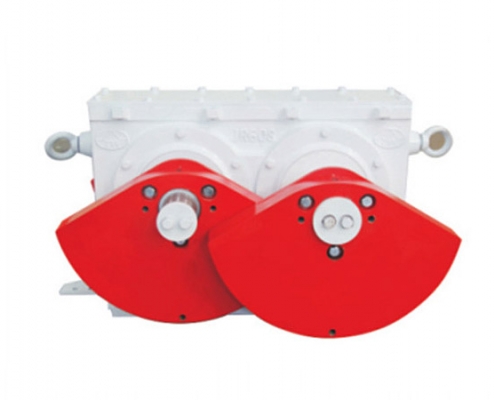

JR SERIES VIBRATING SCREEN EXCITER
TECHNICAL PARAMETERS OF FE (HE) SERIES VIBRATING SCREEN EXCITER
| Model | JR406 | JR408 | JR608 | JR818 | |
| Speed (r/min) | 1000 | 830 | 830 | 830 | |
| Static Moment | 1588 | 3886 | 9077 | 7069 | |
| (Kg•cm) | 4400 | 6700 | 5712 | 12400 | |
| Maximum Exciting Force (kN) | 395 | 319 | 362 | 395 | |
| Weight | 602 | 724 | 432 | 937 | |
| (Without Shield) | |||||

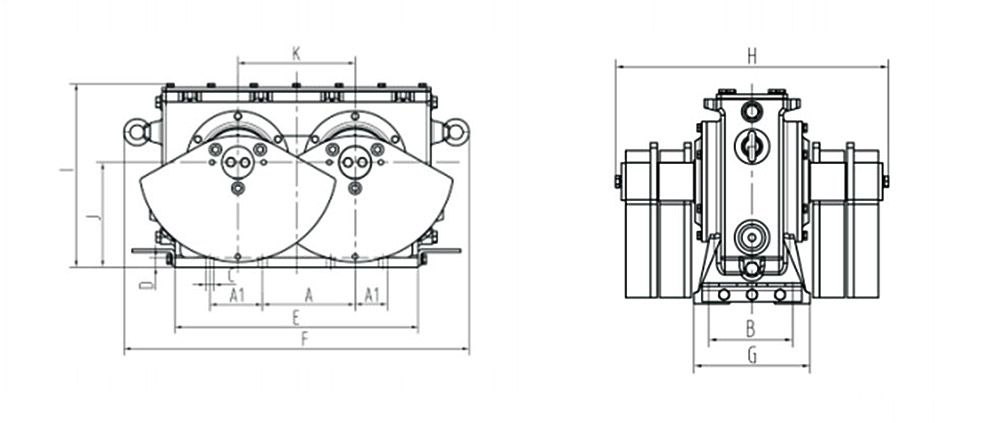

| Size (mm) | A | 300 | 300 | 360 | 360 |
| A1 | 110 | 110 | 120 | 120 | |
| B | 220 | 220 | 300 | 300 | |
| C | φ26 | φ26 | φ33 | φ33 | |
| D | 27 | 27 | 32 | 32 | |
| E | 685 | 685 | 740 | 770 | |
| F | 970 | 970 | 1081 | 1101 | |
| G | 280 | 280 | 370 | 370 | |
| H | 659 | 659 | 803 | 927 | |
| I | 517 | 517 | 558 | 575 | |
| J | 295 | 295 | 320 | 335 | |
| K | 330 | 330 | 360 | 380 | |
